Features

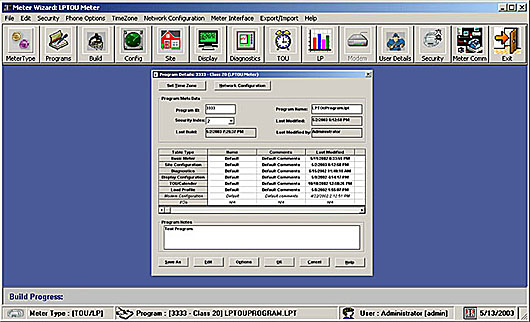

This application will help you setup the eM200 electric meter. With it you can configure the electric meter for a Load Profile Meter, TOU Meter or simply a Demand Meter. It supports any number of tariff configurations. The MeterWizard has been designed with extensive input from meter shop professionals and comes packaged with the tools needed to read/program electric meters via the optical port.

HHF Features
MeterWizard uses an HHF builder to store meter data in a special binary HHF format for MV90 systems (Held File Format). HHF files contain the memory image of the meter and Load Profile Meter data according to the MV90 standard. This format is used to upload Load Profile data, visual meter reads, event (history) data, and other types of recorder and/or register information into the MV90 system. HHF files are created when data is read via the meter's optical port
Uses ANSI C12-18 to talk to the electric meter via optical port Performs Read / Write operations to the meter Windows based software with user-friendly GUI and context sensitive help Logs diagnostic events that occurs during communication with the meter Individual users can have limited access to the program as defined by master user by configuring their permissions Write and view the HHF files generated by the MV-90 HHF standards HHF files can generate the following reports: Current Billing Last Reset Values Last Season Values Meter Status Load Profile Meter Setup

Advanced Features
	Create programs for Demand meter, Time of Use (TOU) meter and Load Profile meter
	Menu options dynamically switch to match meter type
	Default programs are provided for all meter configurations and programmable parameters. Users can create their own defaults.
	Parameters are grouped logically for easy configuration
	Each option can be independently saved as a sub program and can be re-used in new configurations
	'Verify Configuration' option checks parameters and prompts users to verify suspect selections
	Once created, the configuration file can be programmed into multiple meters
